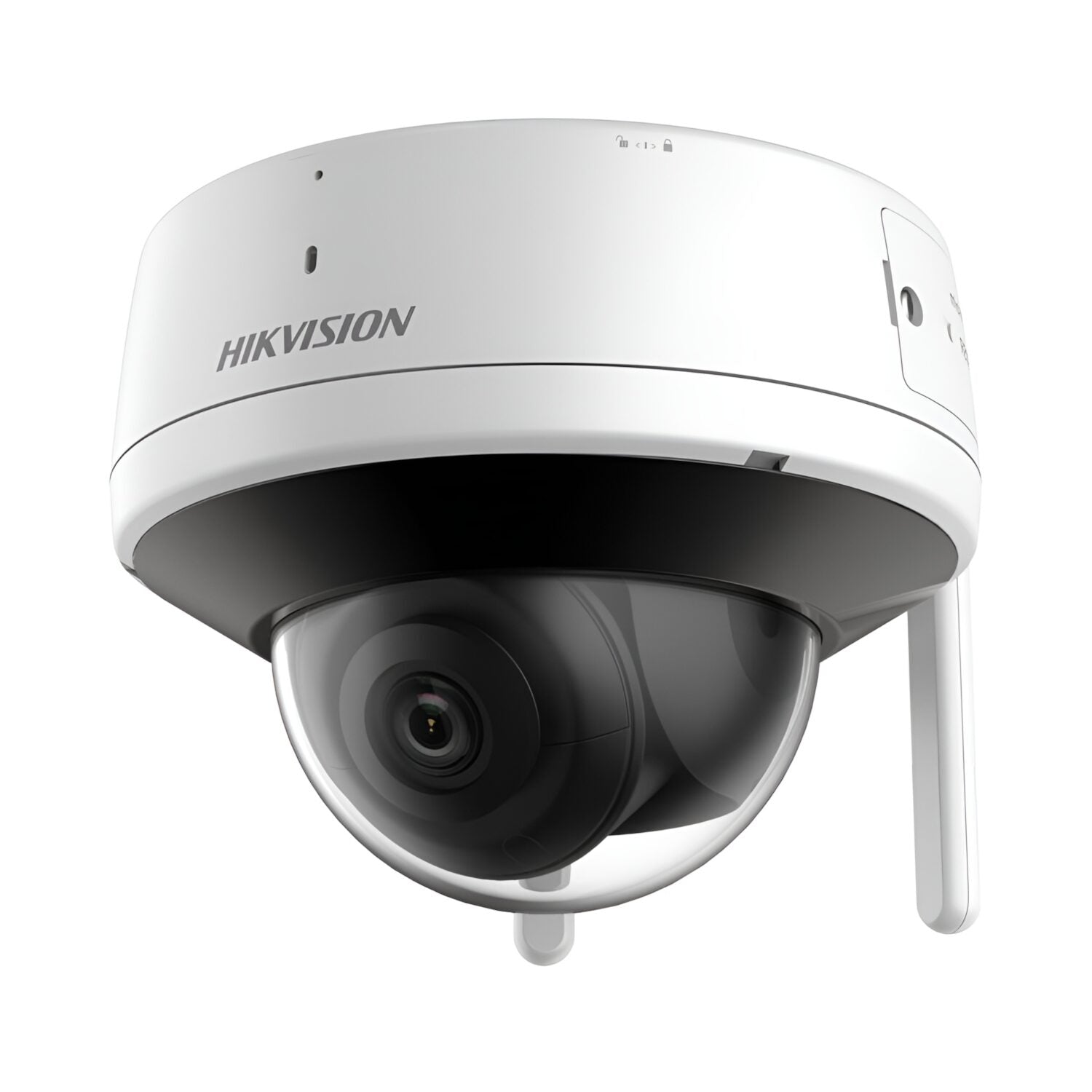

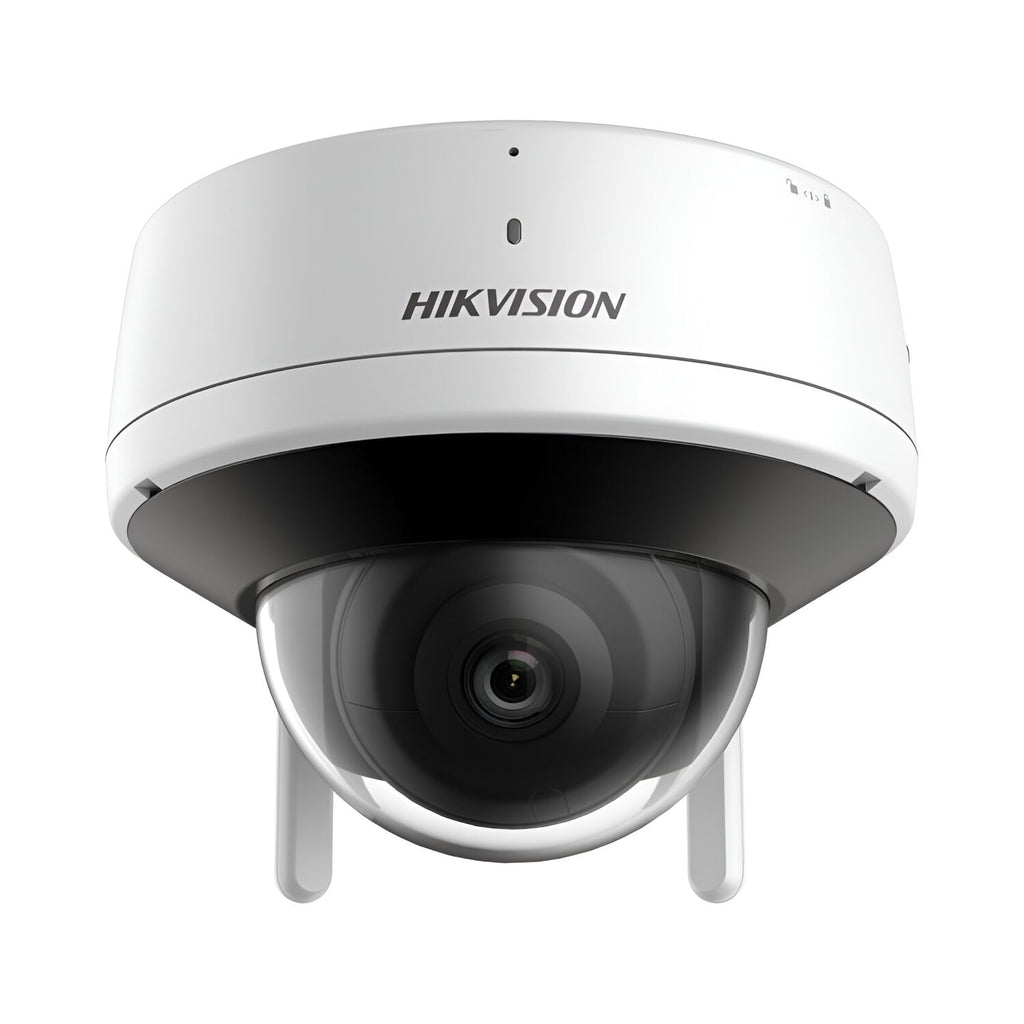

Hikvision Fixed Dome Outdoor Security Camera, 4mm Lens, 2MP

FEATURES:

• High-quality imaging with 2 MP resolution
• Wi-Fi connection and easy installation
• Provides real-time security via built-in two-way audio
• Efficient H.265 compression technology
• EXIR 2.0, advanced infrared technology with long IR distance
• Water and dust resistant (IP66)
• Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB

SPECIFICATIONS:

• Camera
• Image Sensor: 1/2.8″ Progressive Scan CMOS
• Max. Resolution: 1920 × 1080 (2MP)
• Min. Illumination:Colour: 0.005 Lux @ (F1.6, AGC ON) B/W: 0 Lux with IR
• Shutter Time: 1/3 s to 1/10,000 s
• Day & Night: IR cut filter
• Angle Adjustment:Pan: 0° to 355°, Tilt: 0° to 75°, Rotate: 0° to 355°
• Lens
• Lens Type: Fixed focal lens (4mm)
• Focal Length & Field of View (FOV): Horizontal FOV 75°, Vertical FOV 41°, Diagonal FOV 89°
• Aperture: F1.6
• Iris Type: Fixed
• Lens Mount: M12
• Depth of Field: 4mm: 2m to ∞
• DORI
• 4mm: Detection (D): 52m, Observation (O): 21m, Recognition (R): 11m, Identification (I): 5m
• Illuminator
• Supplement Light Type: IR
• IR Wavelength: 850nm
• Supplement Light Range: Up to 30m
• Smart Supplement Light: Yes
• Video
• Main Stream:50Hz: 25fps (1920 × 1080, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 720)
• Sub-Stream:50Hz: 25fps (768 × 432, 512 × 288) 60Hz: 30fps (768 × 432, 512 × 288)
• Video Compression: Main Stream: H.264 Sub-Stream: H.264
• Video Bit Rate: 32 Kbps to 8 Mbps
• H.264 Type: Baseline Profile/Main Profile/High Profile
• Audio
• Audio Compression: G.711 / AAC-LC
• Audio Bit Rate:64Kbps (G.711)/16–64Kbps (AAC-LC)
• Audio Sampling Rate: 8kHz / 16kHz
• Environment Noise Filtering: Yes
• Network
• Protocols Supported: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, UPnP, IGMP, QoS, IPv4, UDP, Bonjour, SSL/TLS
• Simultaneous Live View: Up to 6 channels
• API: ONVIF, SDK
• Client: Hik-Connect, iVMS-4200, Hik-Partner-Pro
• Security Features: Password protection, HTTPS encryption, Security audit log, Basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE for Open Network Video Interface
• Wi-Fi
• Transfer Rate: 11b: Up to 54 Mbps, 11g: Up to 54 Mbps, 11n: Up to 150 Mbps
• Wi-Fi Protocols: IEEE 802.11b/g/n
• Frequency Range: 2.412 GHz to 2.472 GHz
• Channel Bandwidth: 20 MHz
• Modulation: 802.11b: CCK, QPSK, BPSK, 802.11g: OFDM, 802.11n: OFDM
• Wireless Range: Up to 120m (varies based on environment)
• Antenna: 2 antennas
• Image
• Image Settings: Rotate mode, saturation, brightness, contrast, sharpness
• Day/Night Switch: Auto, Schedule, Day, Night
• Wide Dynamic Range (WDR): Digital WDR
• Privacy Mask: 4 programmable polygon privacy masks
• Interface
• Built-in Microphone: Yes
• Built-in Speaker: Yes
• On-Board Storage: Supports microSD/microSDHC/microSDXC cards (up to 512GB)
• Reset Key: Yes
• Ethernet Interface: 1 × RJ45 10M/100M self-adaptive Ethernet port
• Event
• Basic Events: Motion detection (human and vehicle classification), exception alerts
• Linkage Methods: Upload to memory card, notify surveillance centre, trigger capture, audible warning, auto-tracking lite
• General
• Power Supply: 12V DC ±10%, 1A, max. 10W, Ø 2mm coaxial power plug, reverse polarity protection
• Operating Temperature: -30°C to 60°C (-22°F to 140°F), Humidity ≤95% (non-condensing)
• Storage Temperature: -30°C to 60°C (-22°F to 140°F), Humidity ≤95% (non-condensing)
• Material:Base: Metal, Front Cover: Polycarbonate, Back Cover: Polycarbonate
• Dimensions: 12 × 12 × 9.5 cm
• Weight: Approx. 593g
• Certifications & Compliance
• EMC Compliance: CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4:2011+A1:2014)
• RF Compliance: CE-RED (EN 301489-1 V2.1.1, EN 301489-17 V3.1.1, EN 300328 V2.1.1, EN 62311:2008)
• Safety Compliance: CB (IEC 62368-1: 2014+A11)
• CE-LVD (EN 62368-1: 2014/A11:2017)
• Environmental Compliance: CE-RoHS (2011/65/EU) WEEE (2012/19/EU)
• Protection Rating: IP66 (IEC 60529-2013)
